S.G. Iron Globe Valve

Desgin Std — BS 5152 / DIN 86251
Flanged ends to DIN 2533 PN - 16 RF
SS — 410 Working Parts

PMA — 16 bar / PMO — 12.9 bar
TMA — 300°C / TMO — 220°C

Sizes — ½" to 4"

S.G. Iron Check Valve

Desgin Std — BS 5153
Flanged ends to DIN 2533 PN - 16 RF
SS — 410 Working Parts

PMA — 16 bar / PMO — 12.9 bar
TMA — 300°C / TMO — 220°C

Sizes — ½" to 1"

Forged Steel Gate Valve

Class 800 / Class 1500
Design Std — BS 5352 / API 602 / BS EN 15761
Material — A105 / SS 304L / SS316L
End Connection — BSP / NPT / SW
SS — 410 Working Parts

Tested — 3,000 PSI
TMA — 300°C / TMO 220°C

Sizes — ½" to 2"

Stainless Steel Globe Valve

End Connection — BSP / NPT

Material — CF8 / CF8M
Tested — 500 PSI

Sizes — ½" to 2"

Forged Steel Globe Valve Class 800/1500

Design Std — BS 5352 / API 602 / BS EN 15761

Material — A105 / SS 304L / SS 316L
End Connection — BSP / NPT / SW
SS — 410 Working Parts

Tested — 3,000 PSI

Sizes — ½" to 2"

Bronze Globe Valve

Design Std — BS 5154
Screwed — BS 21
Flanged — BS 10 Table 'F'
Working Parts — Bronze / SS 410

Hyd. Tested — 3,000 PSI / 500 PSI

Sizes — ½" to 4"

Forged Steel Check Valve

Class — 800 / 1500
Design Std — BS 5352 / API 602 / BS EN 15761


Material — A105 / SS 304L / SS 316L
End Connection — BSP / NPT / SW
SS — 410 Working Parts

Tested — 3,000 PSI

Sizes — ½" to 2"

Bronze Check Valve

Design Std — BS 5154
Screwed — BS 21

Flanged — BS 10 Table 'F'
Working Parts — Bronze / SS 410


Hyd. Tested — 300 PSI / 500 PSI

Sizes — ½" to 4"

Stainless Steel Steam Trap (Thermodynamic)

Material — ASTM - A743 Gr. CA40
End Connection — BSP / NPT / SW

PMA — 63 bar / PMO — 42 bar
TMA — 400°C / TMO — 255°C

Sizes — ½" to 1"

S.G. Iron 'Y' Strainer

SS / Brass Screen
Screwed to BS 21
Flanged to PN 16 / CL - 150

Hyd. Tested — 500 PSI

Sizes — ½" to 4"

Stainless Steel Ball Valve (2pc Design)

End Connection — BSP / NPT

Material — CF8 / CF8M

WOG — 1,000 PSI

Sizes — ½" to 4"

Stainless Steel Ball Valve (3pc Design)

Screwed / Flanged

Material — CF8 / CF8M

WOG — 1,000 PSI

Sizes — ½" to 4"

Butterfly Valve (Wafer Type)

Design Std — BS 5155 / API 609/ IS 13095
Mounting Falnge Acc. to ISO 1211
Disc — CF8M / CF8 /S.G. Iron
Liner — EPDM / Nitrile / Vition

Tested — 16 bar

Sizes — 1.1/2" to 18"

Dual Plate Check Valve

Body — C.I / S.G. Iron / WCB
Disc — CFM8 / CF8 / S.G. Iron

Tested — 16 bar

Sizes — 2" to 18"

Swing Type Wafer Check Valve

Body — CF8M / CF8 / WCB (M.S.)
Disc — CFM8 / CF8 / WCB (M.S.)

Tested — 16 bar

Sizes — 1" to 12"

Elbow

Forged (1,000/3,000) — A105 / M.S.
Cast (1,000) — S.G. Iron (D.I.)

Sizes — ½" to 4"

Socket

Forged (1,000/3,000) — A105 / M.S.
Cast (1,000) — S.G. Iron (D.I.)

Sizes — ½" to 4"

Hex Nipple

Forged (1,000/3,000) — A105 / M.S.
Cast (1,000) — S.G. Iron (D.I.)

Sizes — ½" to 4"

Ductile Iron Seal Valve

Material — FCD-S
Type — Globe Valve
Pressure — 10K / 20K / 150lb / 300lb
Temperature — Max 350°C
Seat — Metal Seat (Stellited) / Soft Seat

Size — 15A ~ 250A

Stainless Steel Seal valve

Material — SCS 1 3A / 1 4A
Type — Globe Valve / Gate Valve
Pressure — 10K / 20K / 150lb / 300lb
Temperature — Max 350°C
Seat — Metal (Stainless) / Metal (Stellied) / Soft

Size — 10A ~ 200A

Cast Steel Seal Valve

Material — ASTM A21 6-WCB
Type — Globe Valve / Gate Valve
Pressure — 10K ~ 40K / 150lb / 300lb / 600lb
Temperature — Max 425°C
Seat — Metal Seat (Stellited)

Size — 2B ~ 12B

Forged Steel Seal Valve

Material — ASTM A105
Type — Globe Valve / Gate Valve
Pressure — 10K ~ 40K / 150lb ~ 800lb
Temperature — Max 425°C
Seat — Metal Seat (Stellited)

Size — ½B ~ 2B

Cast Iron Flanged Commissioning Valve

Cast Iron flanged swing check valve

Cast Iron Flanged Butterfly Valve

Cast Iron Flanged Check Valve

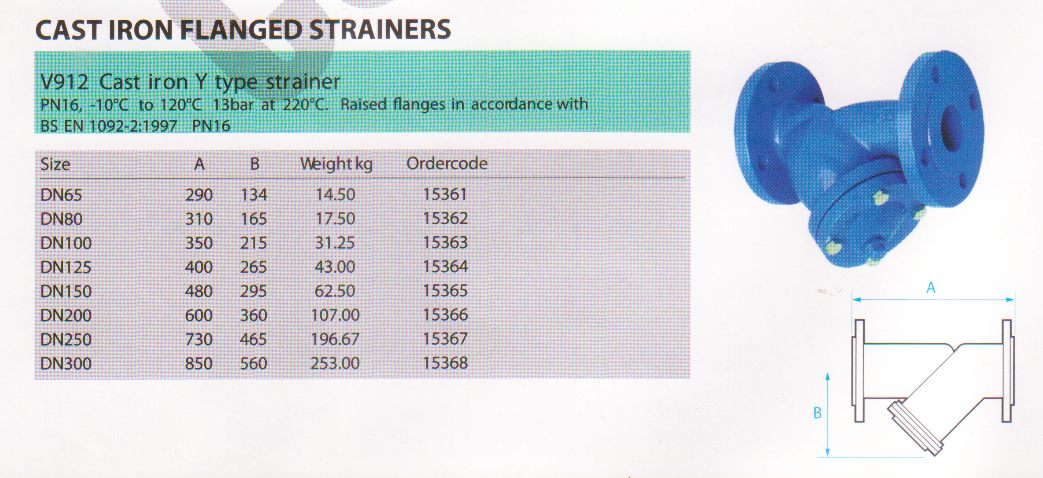

Cast Iron Flanged Strainer

FM Piston Valve

Double Regulating Balancing Valve

Flanged Balancing Valve



Honeywell FCU Valves & Actuators


VC Series

2 & 3 Way Valves

V4 Series

2 & 3 Way Valves

V53 Series AHU Valves

2 & 3 Way Flanged Connection Control Valves

M64/74 Series Valve Actuators

V50/58 Series

2 & 3 Way Threaded Connection Control Valves

ML 74/79 Series Valve Actuators

V54 Series 3 Way Rotary Valves

VC79 Series AHU Valve Actuators
